工业用不锈钢雾化喷嘴

内容来源:未知    发布时间:2017/08/10    浏览次数:

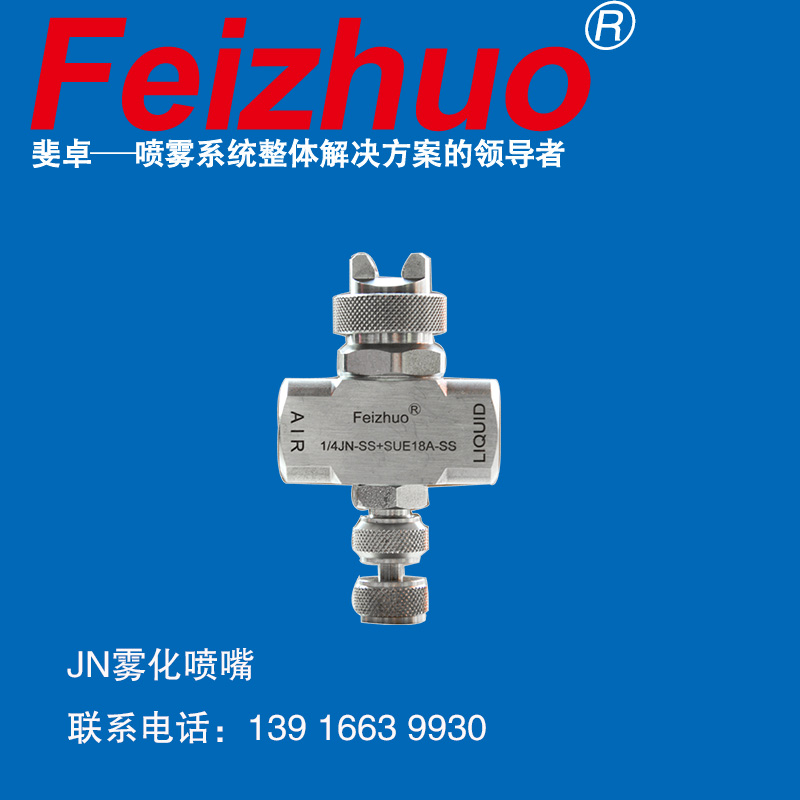

工业用不锈钢雾化喷嘴
不锈钢空气雾化喷嘴设计特点:
喷嘴本身利用压缩空气和液体的摩擦,产生平均粒径50微米以下非常均匀和细密的雾化效果;
喷嘴分为连接本体和喷雾装置2部分,喷雾装置分为液体帽和空气帽;

喷嘴的喷雾形状分为:扇形喷雾和实心喷雾,360度环形

连接本体可选用调节针阀调节流量;

喷嘴的连接本体设有两个独立的标有Liquid和Air的标志,

雾化形式分为压力雾化和虹吸雾化;

压力雾化—水需要一定的压力,但雾化效果较理想,是最普通的雾化方式;虹吸雾化—通过高速气流形成的空气负压将水“吸”上来,但是雾化效果一般;

喷雾设备分为内混式和外混式;
内混式雾化—气体、液体在空气帽和液体帽腔体内部混合雾化,雾化原理为空气破裂和撞击,雾化效果理想;但是不适合带有黏度的液体。-推荐;
外混式雾化-气体、液体在喷出后,利用高速气流对液体进行摩擦产生雾化。雾化原理为摩擦和产生的切向响应,雾化效果一般,比较适合带有黏度的液体。

不锈钢雾化喷嘴的部件:
护圈,空气帽,液体帽,前垫片,连接本体,后垫片
连接尺寸:J和JN系列连接尺寸为1/8,1/4,1/2和1英寸。JCO系列仅限1/8,1/4,1/2英寸连接。
不锈钢雾化喷嘴一般应用:
磨具自动润滑;
喷雾加湿;
自动喷涂脱模剂
自动喷洒
自动喷码打标;
定时定量喷洒化学剂;
 Industrial stainless steel atomizing nozzle

Stainless steel air atomizing nozzle design features:
Using compressed air and liquid friction nozzle itself, produce the average particle size below 50 microns is very uniform and fine atomization effect;
Divided into connected ontology and spray 2 sections, the nozzle spray is divided into liquid cap and air cap;
Spray shape of the nozzle can be divided into: the fan-shaped spray and solid spray, circular 360 degrees
Connected ontology can choose adjust needle valve adjusting flow;
Nozzle connection ontology is equipped with two independent with a sign of Liquid and Air,
In the form of atomization pressure atomization and siphon atomization;
Pressure spray - water needs certain pressure, but the atomization effect is ideal, is the most common way of atomization;Siphon atomization - air negative pressure formed through high-speed airflow "suck up the water, but the atomization effect in general;
Spray equipment is divided into the mixed type and mixed type;
In mixed type atomized - gas, liquid in the air cap and cap cavity internal mixing atomization, atomization principle and the impact for air burst, atomization effect is ideal;But it doesn't fit with the viscosity of the liquid.- recommended;
Outer recirculation in jet atomization gas, liquid, using high speed air atomization of liquid friction.Atomization principle of friction and the tangential response, atomization effect, suit with the viscosity of the liquid.
Stainless steel atomizing nozzle parts:
Retainer, air cap, liquid cap, gasket, connected ontology, the gasket
Connection size: J and Jacqueline Nottingham series connection size is 1/8, 1/4, 1/2, and 1 inch.JCO series only 1/8, 1/4, 1/2 "connection.
Stainless steel atomizing nozzle general applications:
Abrasive tool automatic lubrication;
Spray humidification;
Automatic spraying mold release agent
Automatic spraying
Automatically printing marking;
Timing quantitative spraying chemical agent;Industrial stainless steel atomizing nozzle
Stainless steel air atomizing nozzle design features:
Using compressed air and liquid friction nozzle itself, produce the average particle size below 50 microns is very uniform and fine atomization effect;
Divided into connected ontology and spray 2 sections, the nozzle spray is divided into liquid cap and air cap;
Spray shape of the nozzle can be divided into: the fan-shaped spray and solid spray, circular 360 degrees
Connected ontology can choose adjust needle valve adjusting flow;
Nozzle connection ontology is equipped with two independent with a sign of Liquid and Air,
In the form of atomization pressure atomization and siphon atomization;
Pressure spray - water needs certain pressure, but the atomization effect is ideal, is the most common way of atomization;Siphon atomization - air negative pressure formed through high-speed airflow "suck up the water, but the atomization effect in general;
Spray equipment is divided into the mixed type and mixed type;
In mixed type atomized - gas, liquid in the air cap and cap cavity internal mixing atomization, atomization principle and the impact for air burst, atomization effect is ideal;But it doesn't fit with the viscosity of the liquid.- recommended;
Outer recirculation in jet atomization gas, liquid, using high speed air atomization of liquid friction.Atomization principle of friction and the tangential response, atomization effect, suit with the viscosity of the liquid.
Stainless steel atomizing nozzle parts:
Retainer, air cap, liquid cap, gasket, connected ontology, the gasket
Connection size: J and Jacqueline Nottingham series connection size is 1/8, 1/4, 1/2, and 1 inch.JCO series only 1/8, 1/4, 1/2 "connection.
Stainless steel atomizing nozzle general applications:
Abrasive tool automatic lubrication;
Spray humidification;
Automatic spraying mold release agent
Automatic spraying
Automatically printing marking;
Timing quantitative spraying chemical agent;
